Fonts

The [Setup] section of the SmartCAMcnc.ini file contains three settings that allow you to customize the screen fonts to accommodate different screen resolutions and screen displays. By default SmartCAM uses the Windows Segoe UI font.

Changing the Font

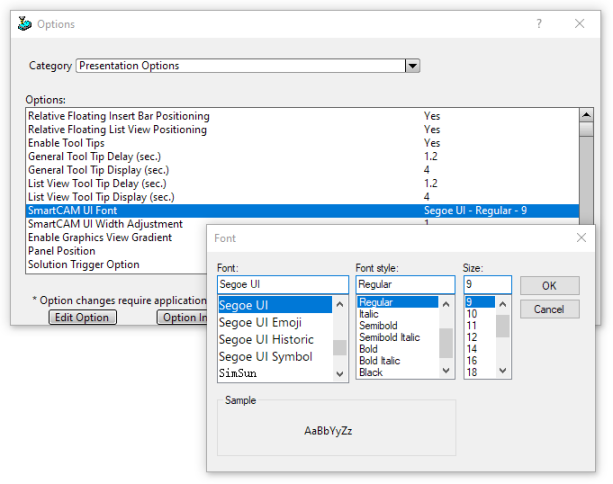

Use Utility - Options - Presentation Options category to adjust the SmartCAM UI Font and SmartCAM UI Width Adjustment options.

The SmartCAM UI Font property allows you to select the font, font style, and font size which you prefer.

SmartCAM UI Width Adjustment allows you to add a little space around SmartCAM panel and dialog labels, input boxes, buttons, and other user interface components. When using the Font related settings, you can select a new font style, size, and weight to use as the display font for the SmartCAM UI. Some of these font selection may cause SmartCAM panel and dialog components to be arranged too close to each other. Using this INI setting you can adjust the spacing around the UI components. Supported values are between -5 (makes text closer together) to 5 (spaces text farther apart).
