SmartCAM® SOLIDWORKS® Connection™

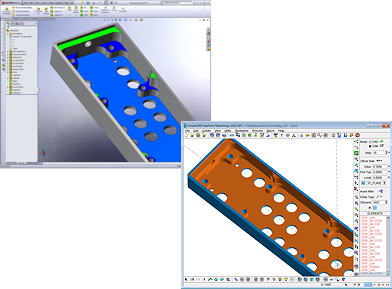

SmartCAM SOLIDWORKS Connection™ is an optional, native-format data translator available for purchase. When installed on a system with SmartCAM, it allows users to read SOLIDWORKS® part files directly into SmartCAM™ without need to use intermediate file formats such as STEP, IGES or SAT Solid.




SmartCAM SolidWorks Connection Features

  • Reads .SLDPRT Files
    Reads SolidWorks .SLDPRT Part files created in SolidWorks 98 through SolidWorks 2019. Note: SolidWorks support is only available after installing the 64-bit data translation update
  • Drag and Drop
    Your SolidWorks files can be opened directly in your SmartCAM application using drag and drop.
  • Part Model Units
    Supports the metric or inch units of the solid model file.





Ease of Use

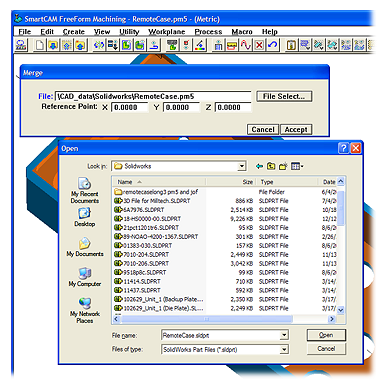

Once installed, the SmartCAM SOLIDWORKS Connection is accessed directly via the File Open and Merge dialog boxes, and supports drag and drop onto the SmartCAM interface.



System Requirements
No additional requirements beyond the SmartCAM base application requirements.



More Information
For more information on SmartCAM SolidWorks Connection, contact us through the website, www.SmartCAMcnc.com, email Sales@SmartCAMcnc.com, or call 541-344-4563.
